DESCRIERE PRODUS

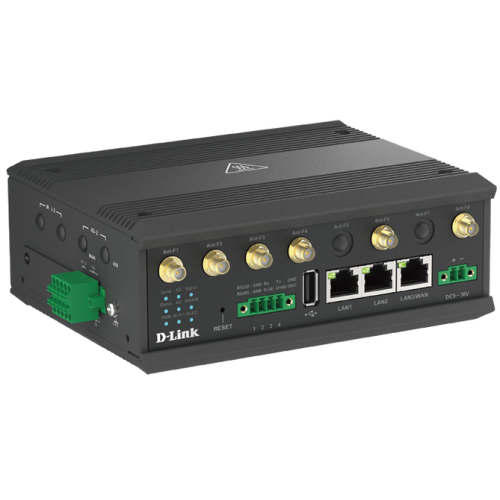

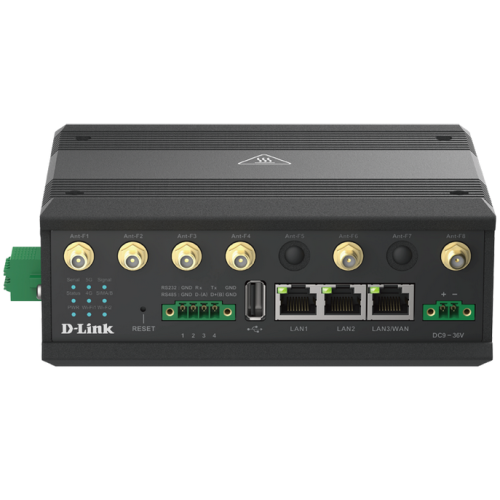

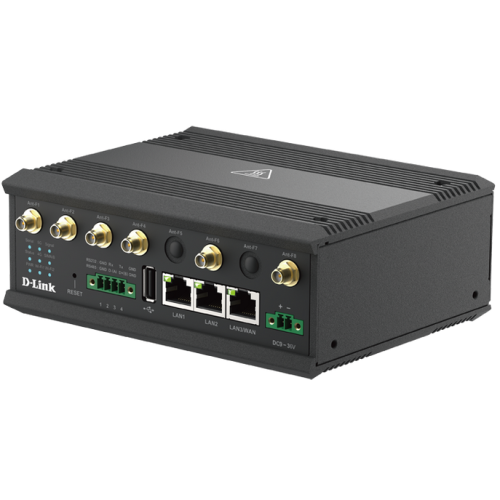

5G-IIOT-GATEWAY/1X 1G WAN/LAN 2X 1G LAN DUAL-SIM
Specificatii produs
-
Caracteristici generale
UtilizareSmall businessPorturi LAN2 x LANPorturi LAN/WAN1 GbpsPort LAN/WAN1 x LAN/WANPort USB1 x USB 2.0Porturi1 x RS-232/RS-485 terminal block
2 x DI (isolated, logic 0: 0-2 V, logic 1: 5-30 V)
2 x DO (isolated, non-relayed output, 24 V/300 mA per port) terminal block
Micro SD slotFrecventa2.4 GHz
5 GHzViteza de transfer WI-FI1166 Mbps
2.4 GHz - 300 Mbps
5 GHz - 866 MbpsStandardeIEEE 802.11 a/b/g/n/acDual BandDaManagementManagement: SNMPv1/2/3, D-Link D-ECS
Maintenance: Web UI, diagnostic tools via ping/tracert
System: FW upgrade, backup and restore config, reboot and reset
Logging: System log, external syslog server, Modbus dataSecuritateAccess Control: MAC/IP filter, URL blockingFirewallFirewall: SPI firewall, IPS, port forwardVPNVPN Tunnel: IPSec, OpenVPN, PPTP, L2TP, GRE, WireGuard
VPN Pass Through: IPSec, PPTP, L2TPDNSDynDNS, No-IP, dynamic DOTip antenaExterneAntena4 x SMA (F) cellular, 2 x SMA (RP-F) Wi-Fi4G4G LTE5G5G NRSuport Sim2 x SIM (Micro SIM)Functii LEDStatus LEDAlimentareDC 9-36 V terminal blockDimensiuni62 x 125 x 160 mmCuloareNegruPortabilNuContinut pachet4 x Cellular SMA
2 x Wi-Fi RP-SMA
1 x Cablu retea
Alimentator
1 x Terminal Block (2-pin)
1 x Terminal Block (4-pin)
1 x Terminal Block (10-pin)
1 x DIN-Rail KitButoaneReset ButtonTemperatura de functionare-30 °C - 70 °C
-
