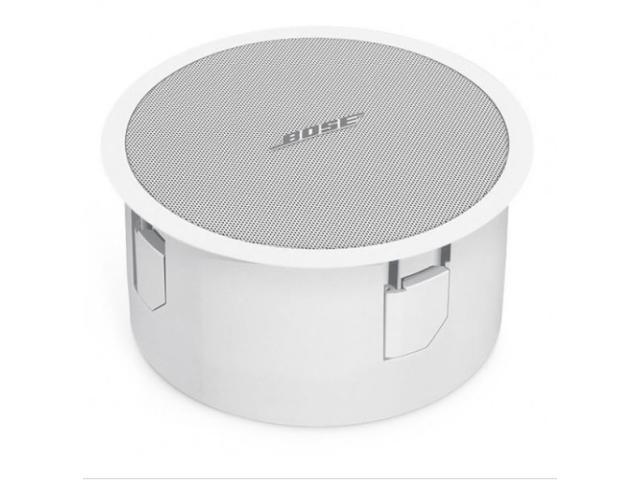

Boxe de tavan BOSE FreeSpace 3 seriies II Acoustimass, 200W, 100V, 5.25inch, White

Designed to provide flush-mount bass augmentation for new and existing background music systems. Features one 5.25" (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.

For indoor applications only.


FEATURES


Low-frequency loudspeaker featuring one 5.25" (133 mm) woofer that delivers deep, non-localized bass support down to 40 Hz without audible distortion. For flush, ceiling, pendant and wall-mount applications

Acoustimass speaker technology filters out audible distortion to deliver non-localized bass

Designed to work with the FreeSpace 3 flush and surface satellite speakers, or existing systems where additional bass reinforcement is desired

Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module

Plenum rated for use in air handling spaces (with optional plenum cover)

Selectable 70/100V or low impedance with transformer tap adjustment under speaker grille



Applications

• Retail stores


• Restaurants and bars


• Lobbies and conference rooms

Technical Summary


Frequency Response (+/-3 dB)
50 Hz - 230 kHz

Frequency Range (-10 dB)
40 Hz - 315 Hz

Nominal Dispersion
Omni-directional below 200 Hz

Long-Term Power Handling
70/100 V: 200 W (800 W peak) mono
Low impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono
Sensitivity (SPL / 1 W @ 1 m)
Per channel: 76 dB SPL (Mono: 79 dB SPL)

Maximum SPL @ 1 m
Per channel: 96 dB SPL (102 dB SPL peak)
Mono: 102 dB SPL (108 dB SPL peak)

Nominal Impedance
6 Ω mono direct (transformer bypassed)
