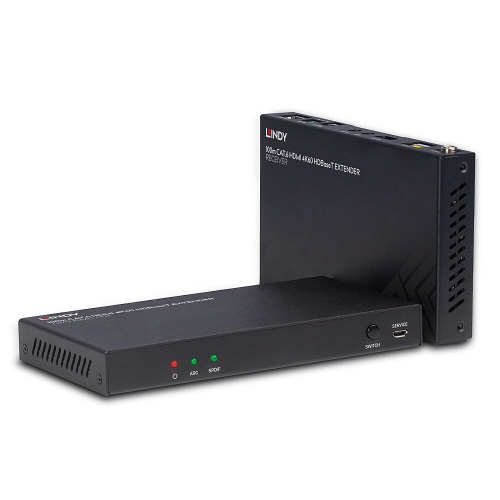

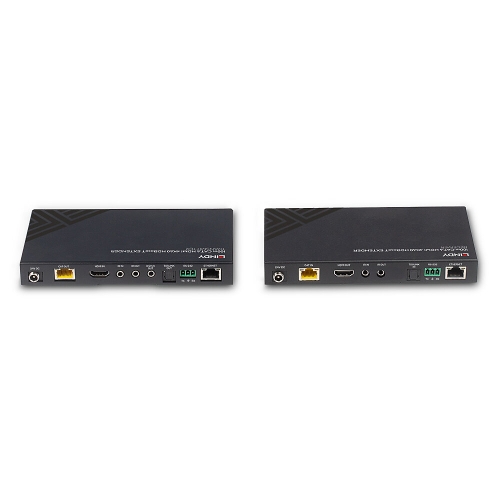

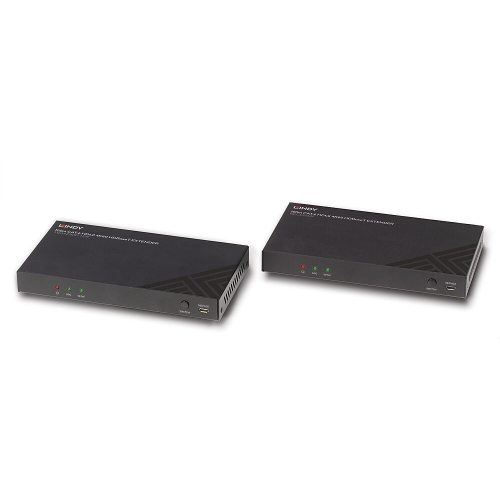

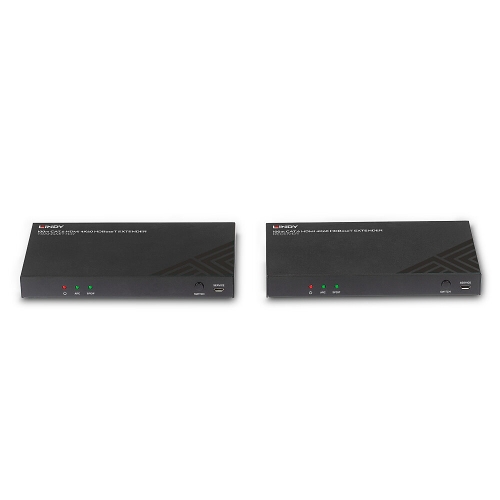

Extender HDMI Lindy LY-38340

Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR ARC Support as well as RS-232, CEC & Ethernet pass-through & bi- directional IR for simple control Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18 Gbps Maximum Distance: 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit 100m (328.08ft) - 1920x1080@60Hz Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through TosLink (Optical) Up to 5.1Ch 3.5mm Up to 2.0Ch Separate Audio Ports: TosLink (Optical), 3.5mm IR Support: 20 - 60KHz CEC Support: Pass-through Serial Interface: RS-232 Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: VS2310TX-A1 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) ARC Support Connectors Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female) Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female), 3.5mm IR (Female) Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 163x90x16mm (6.42x3.54x0.63in) per unit Housing Material: Metal Net Weight: 0.77kg (1.7lb) Operating Temperature : 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 265x70x210mm (10.43x2.76x8.27in) Gross Weight: 1.28kg (2.82lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents HDBaseT HDMI Extender, Transmitter HDBaseT HDMI Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38340 EAN: 4002888383400 https://www.lindy-international.com/100m-Cat-6-HDMI-4K60-Audio-IR-RS- 232-HDBaseT-Extender-.htm?websale8=ld0101.ld021102&pi=38340 &ci=10
