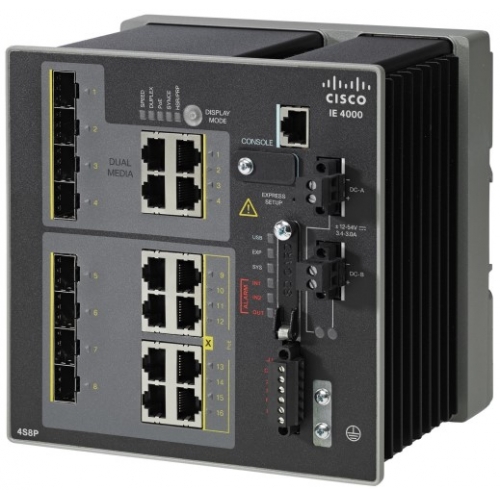

Switch Cisco IE4000 Series IE-4000-4GS8GP4G-E, 12 porturi, PoE+

Retea RJ45

4x SFP
8x RJ45
4x SFP (uplink)
4x RJ45 (uplink)
Porturile combinate oferă un port fizic de cupru, unul de fibră si doar unul poate fi activat la un moment dat.

10/100/1000 Mbps

RJ45 Base-T
SFP Base-X

Da

PoE+
8 porturi

125W

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613

RADIUS, TACACS+

1000

16K

DHCP support, NAT support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, ARP inspection, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP)

1 x RJ45 (consola)
1x mini-USB Tip B

Da
19inch DIN Rail

512 MB

128 MB

OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng

SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI

DC 9.6 - 60 V

4.3 A

40 W

155.4 x 129.2 x 155.4 mm

2.88 kg
