ZBOX edge CI343 (Barebone)
The ZBOX edge CI343 features passive cooling in an ultra-thin design. The ZBOX edge CI343 is a robust, low-profile machine with no moving components while maintaining a wide range of I/O connectivity. From edge computing 4K multi-display digital signage applications to everyday computing needs, the ZBOX CI343 is a silent and capable operator.
ULTRA THIN AND SILENT
ZBOX C SERIES EDGE CI343
ZBOX C SERIES EDGE IS FANLESS
Silent operation.
Higher reliability with no moving parts.
INCREDIBLY SLIM.
A nimble PC that takes on business and everyday computing needs.
FAST SPEEDS.
WIRED OR WIRELESS.
Wi-Fi 6 & Dual LAN.
THE ROBUST, LOW PROFILE SYSTEM
Designed ultra-thin for nimble installation and placement, the ZBOX C Series edge instills silence with powerful passive-cooling hardware to accomplish many tasks.
C SERIES AT ITS THINNEST
Measuring a mere 32mm / 1.3-inch in height, the ZBOX edge maintains a significant low-profile design with silent operation.
WIDE RANGE OF CONNECTIONS
Equipped with a full suite of standard I/O ports, the ZBOX C series edge leaves little to want and everything you need.
Specificatii produs
-
Recomandat
RecomandatSmall Office -
Procesor
Numar procesoare1Producator ProcesorIntelFamilie procesorIntel N-seriesModel ProcesorN100NucleuAlder Lake-NSocket procesor1264Frecventa turbo max3.40 GHzCache6 MB Smart CacheNumar nuclee4Numar thread-uri4Tehnologie10 nm Enhanced SuperFinMax TDP6 WProcesor Grafic integratIntel UHD Graphics -
Monitor
Monitor inclusNu -
Placa De Baza
ChipsetIntelSlot M.2M.2 NVMe PCIe 3.0 x4/SATA SSD slot (2242, 2280)Numar Procesoare suportate1 -
Memorie
Memorie inclusaNuTip memorieDDR5Frecventa memorie4800 MHzSloturi memorie2Memorie maxima16 GBTip sloturi memorieSODIMMCompatibilitate RAMnon-ECCCompatibilitate DIMMSODIMM -
Stocare
Stocare inclusaNuSlot M.2Da -
Video
TipIntegrataProducator placa videoIntelFamilie placa videoUHD GraphicsSuport DirectXDa -
Unitate Optica
Unitate opticaNu are unitate optica integrata -
Conectivitate
LAN10/100/1000 MbpsWireless802.11axBluetooth5.2 -
Carcasa
Tip CarcasaUCFFDimensiune147.2 x 147.2 x 32.1 mmCuloareNegruSursaAdaptor extern 40 WSuportVESA -
Front Panel

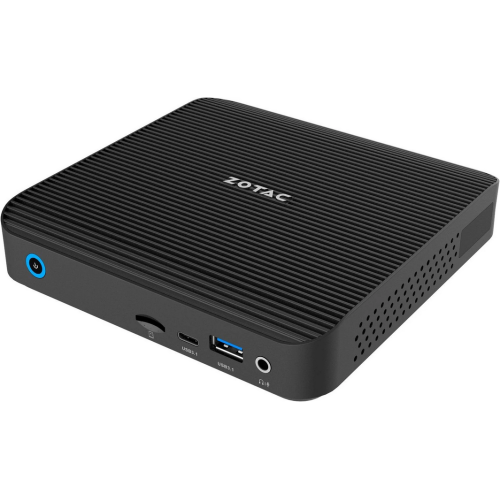

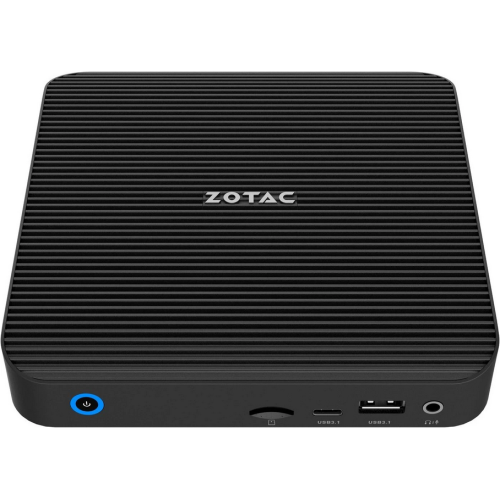

Audio1 x comboUSB 3.11USB Type C1Card ReaderDa, Micro SDHC/SDXC -
Back Panel

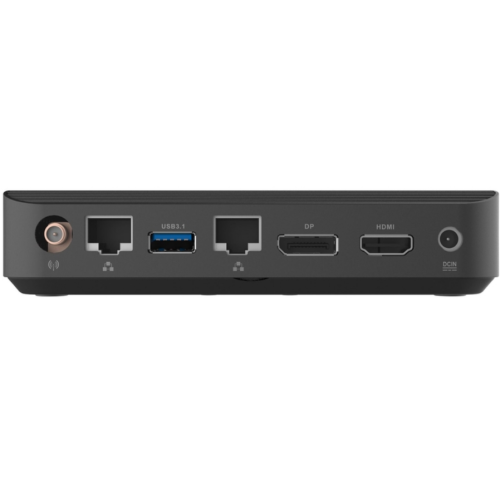

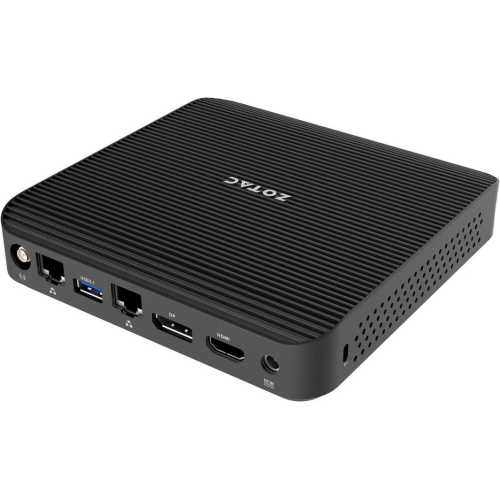

USB 3.11HDMI1Display Port1Retea Ethernet (RJ-45)2 -
Software
Sistem de operareFara sistem de operare -
Periferice
Accesorii incluseAlimentator
Cablu alimentare
Antena WiFi
Kit montare VESA
-
